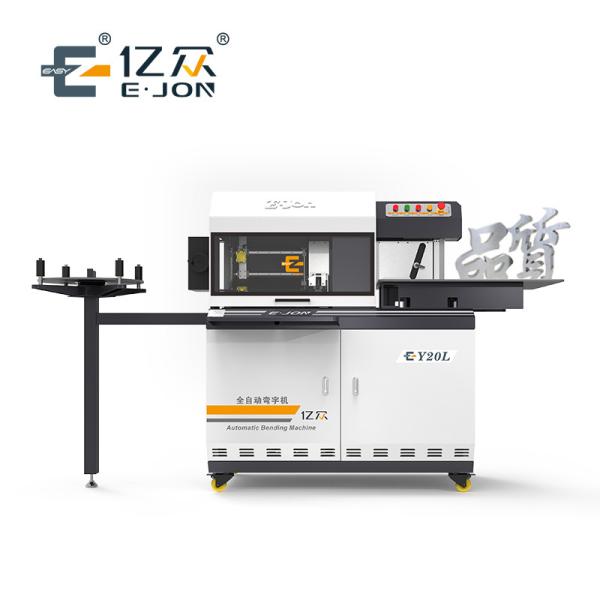

3D Signage Trimcap Channel Letter Bending Machine with Plane Cutter Slotting System

Name: 3D Signage Trimcap Channel Letter Bending Machine with Plane Cutter Slotting System
Brand: Ejon
Price: 7 USD

Cheap 3D Signage Trimcap Channel Letter Bending Machine with Plane Cutter Slotting System for sale

Place of Origin : Tianjin, China

Brand Name : Ejon

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product 2022

Warranty of core components : 1 Year

Core Components : PLC, Motor

Material / Metal Processed : Aluminium alloy, Aluminum, Stainless steel, galvanized plate

Automation : Automatic

Warranty : 1 Year

Weight (KG) : 400

Key Selling Points : Easy to Operate

Applicable Industries : Manufacturing Plant, Advertising Company

Showroom Location : Egypt, Turkey, United States, Italy, France, Viet Nam, Saudi Arabia, Russia, Spain, Thailand, South Korea

Product name : Channel Letter Bending Machine

Processing material : stainless steel, galvanized plate, aluminum plate

Application : advertising channel letters signs

Material thickness : 0.4~1.2mm

Material width : 10-200mm

Bending system : Double Blade Alternate Bending System

Slotting System : Plane Cutter Slotting System

Control System : 4 Axis Control System (2 axis servo control)

File Format : Dxf.PIt.Ai

Applied Industry : Advertising Light Box

Packaging Details : wooden box

Supply Ability : 3000 Set/Sets per Year

Price : $7,600.00/sets 1-2 sets

Contact Now

Product Description

3D Signage Trimcap Channel Letter Bending Machine with Plane Cutter Slotting System

SPECIFICATIONS
Feeding System	Manipulator alternately feeding system
Slotting System	Plane cutter slotting system
Bending System	Double tools alternate bending system
Suitable Material	Stainless steel, galvanized plate, aluminum plate
Material Height	10~200mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system (2 axis servo control)
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC 220 V, 50 Hz, 2.0 kW
Total Weight	400 kg

Casted material clamps alternately feed without scratching and warping the material, ensure the smooth feeding.

Double ball screw matched with nylon gear transmission can greatly improve the feeding speed and stability with its precise positioning.

Plane cutter can slot diverse materials such as stainless steel, galvanized plate and aluminum plate. High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, greatly improve the working life.

Ductile iron casted bending structure has good shock absorption and high structural strength, which reduces the number of parts and components.

Air blowing and cooling function extends the service life of the cutter while ensuring smooth slotting.

Punching function facilites the assembly of letter surface to letter border

One-click start function helps you startup the computer and insert the U disk directly without opening the control cabinet.

Finished Letters

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	151 * 76 * 170cm
Weight	350 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customer's special request.

About us

Tianjin Ejon Flying Science and Technology Co., Ltd

Tianjin Ejon Flying Science and Technology Co., Ltd was founded in 2017, located in Tianjin, China, is specialized in
the production of CNC automation equipment and has independent intellectual property rights and a high-level research and development team. Since established, we have been committed to innovative, highly efficient and precise signs equipment’s research, development and production, the company quickly developed into a comprehensive high-tech signs equipment production enterprise integrating R&D, Production, Sales and Service. The factory covers an area of more than 2,500 square meters, annual sales is more than 3,000 sets which are exported to hundreds of countries and regions. The main products including automatic channel letter bending machine, automatic grooving machine, automatic grinding
machine, automatic deburring machine, laser welding machine, laser cutting machine, etc., are economic, durable and popular with dealers, distributors and the users.
Improvement of the performance is the guarantee of enterprise development, our professional engineers have rich experience to handle different kinds of technical problems. We own an international sales team with integrity and credibility as its basis and service as its goal, our passionate and patient customer service personnel are ready to solve all kinds of problems for buyers any time. To satisfy customer’s demand, our agents of several countries can provide local service in time. Meanwhile, we also recruit agents all over the world.

We are willing to be your best partner for win-win cooperation!
